1/4 Turn Supply Stops

1/4 Turn Supply Stops
Technical Reference:
Forged Lead Free☑brass body
Chrome plated and rough brass
Pressure Rating: 125 psi/ 180°F
Precision machined brass ball is specially engineered and mated with PTFE seats to provide smooth
operation without freeze ups even after long periods of non-use
Two high-performance o-rings withstand high temperatures and corrosion from harsh water environments
100% leak tested
1/4 Turn Supply Stops

1/4 Turn Supply Stops

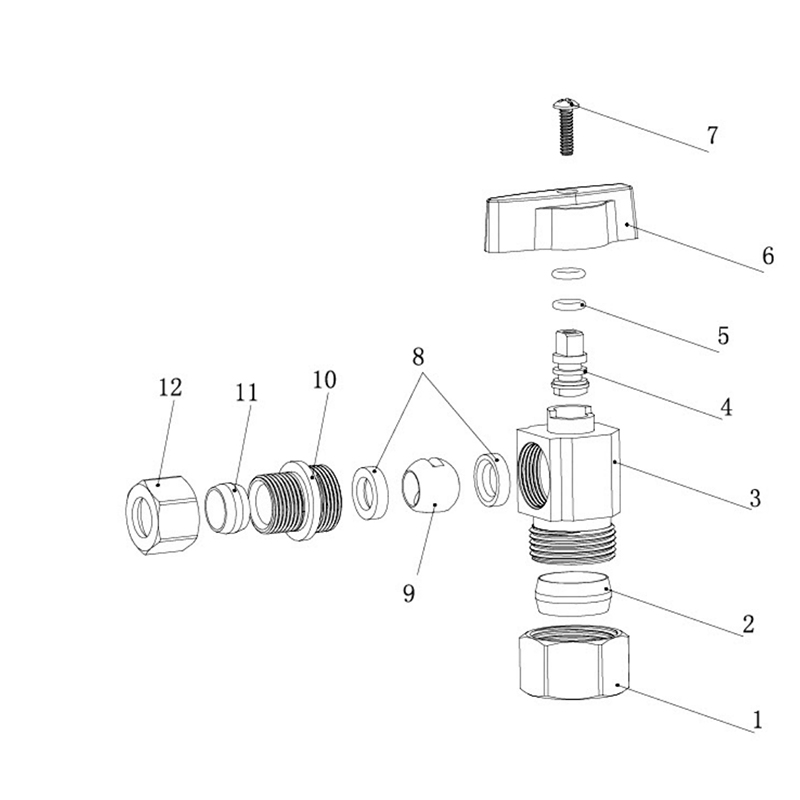

NO. Name Material Qty.
1 Compression Nut Brass 1
2 Sleeve Copper 1
3 Body Lead Free Brass 1
4 Stem Brass 1
5 O-ring NBR 2
6 Handle Zinc 1
7 Screw Steel 1
8 Ball seat PTFE 2
9 Ball Lead Free Brass 1
10 Adapter Lead Free Brass 1
11 Sleeve Copper 1
12 Comoression Nut Brass 1

Warmly welcomes you to inquire

TEL: 0086-576-89929181
MOB: +86-13857682133
FAX: 0086-576-87138778
EMAIL: sales@ydvalve.com

More Than 20 Years Experience To Global Supply of High Quality Valves

Found in 1999 in China,ZHEJIANG YUNDA FLUID INTELLIGENT CONTROL CO.LTD. is a professional manufacturer in plumbing industry ,We have more than 200 sets of manufacturing equipment including forging, CNCs, and assembly production lines, in order to make quick responses to market changes.

  • Standard Brass Valves and Fittings.
  • DZR Brass Valves and Fittings.
  • Lead Free Brass Valves and Fittings.
  • Water Hammer Arrester and Valves.
