YD101B

YD101B

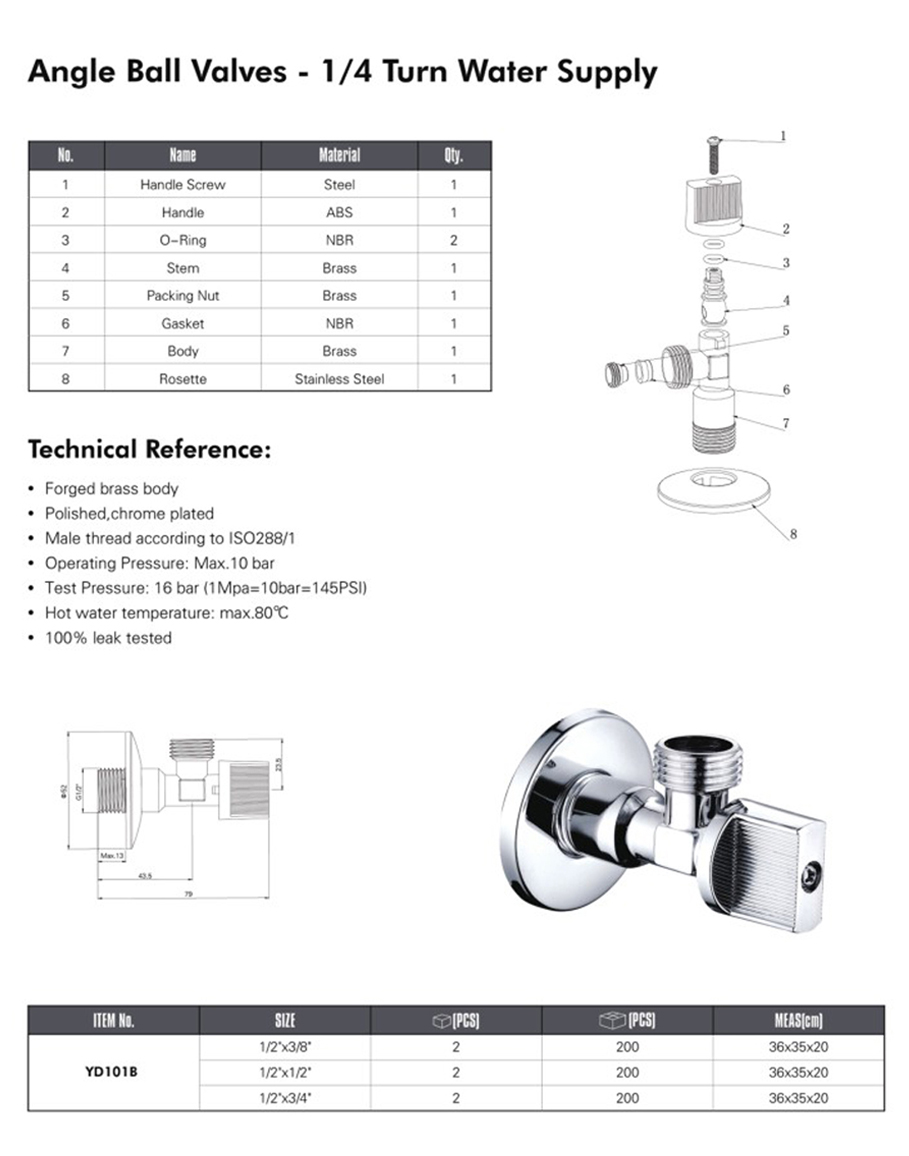

Technical Reference:
●Forged brass body
●Polished,chrome plated
●Male thread according to IS0288/1
●Operating Pressure: Max.10 bar
●Test Pressure: 16 bar (1 Mpa= 1Obar=1 45PSI)
●Hot water temperature: max.80℃
●100% leak tested
YD101B

YD101B

ITEM No. SIZE [PCS] [PCS] MEAS[cm]
YD101B 1/2"x3/8" 2 200 36x35x20
1/2"x1/2" 2 200 36x35x20
1/2"x3/4" 2 200 36x35x20

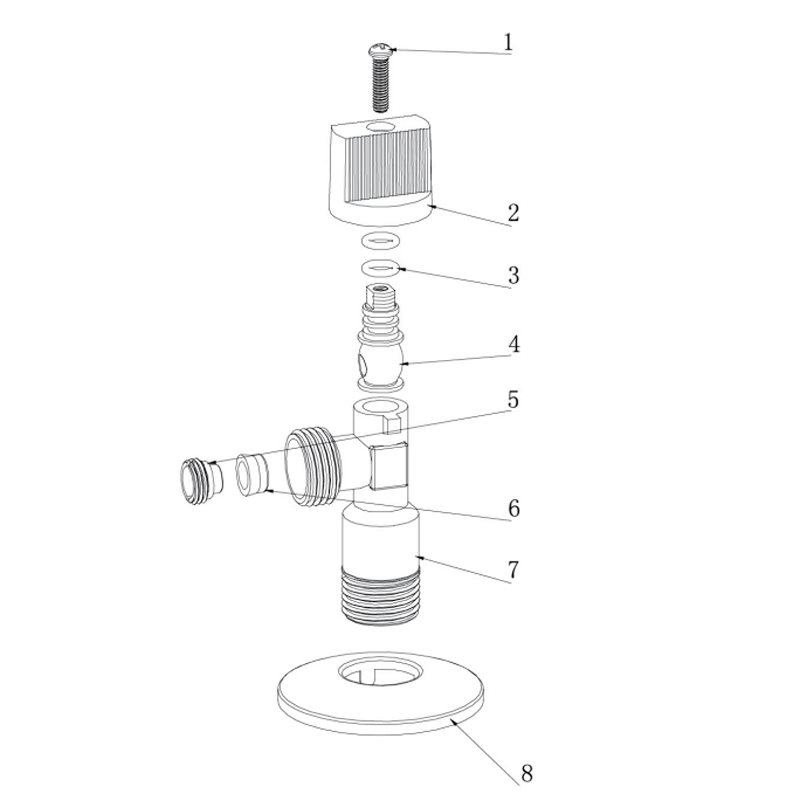

NO. Name Material Qty.
1 Handle Screw Steel 1
2 Handle ABS 1
3 O-Ring NBR 2
4 Stem Brass 1
5 Packing Nut Brass 1
6 Gasket NBR 1
7 Body Brass 1
8 Rosette Stainless Steel 1
