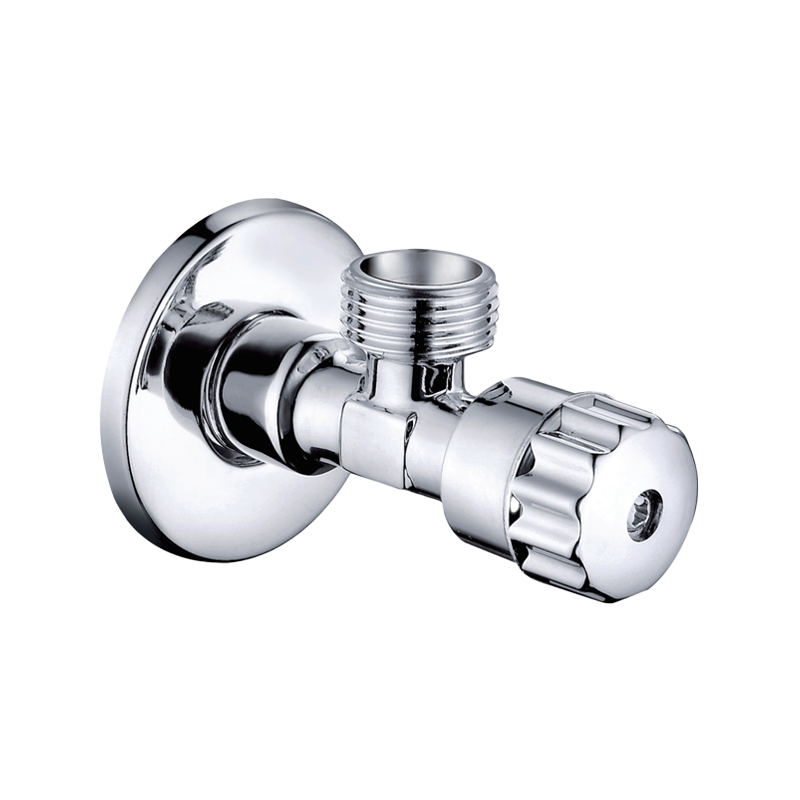

YD301B

YD301B

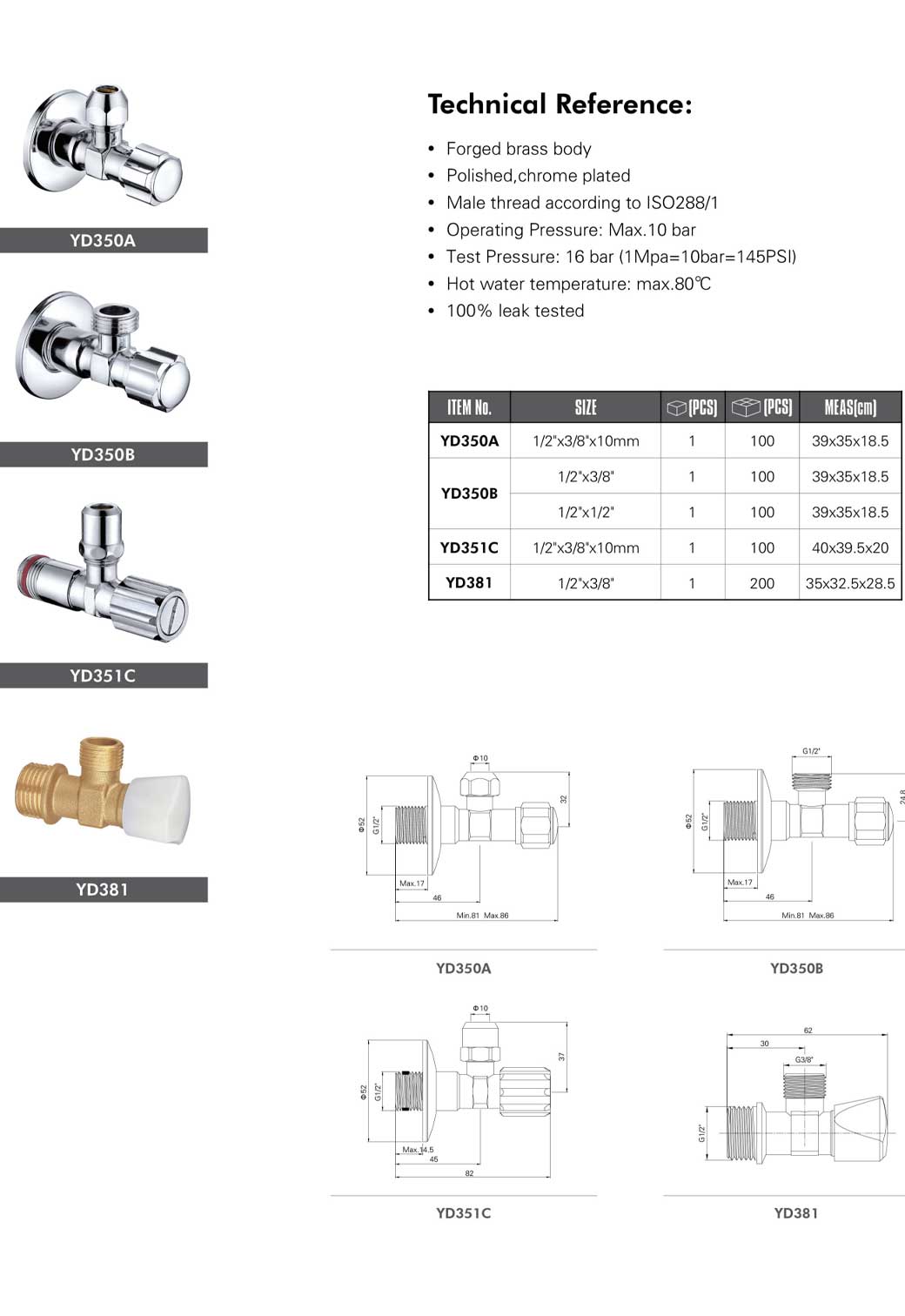

Technical Reference:
●Forged brass body
●Polished,chrome plated
●Male thread according to IS0288/1
●Operating Pressure: Max.10 bar
●Test Pressure: 16 bar (1 Mpa= 1Obar=1 45PSI)
●Hot water temperature: max.80℃
●100% leak tested
YD301B

YD301B

ITEM No. SIZE [PCS] [PCS] MEAS[cm]
YD301B 1/2"x3/8" 2 200 36x35x20
1/2"x3/4" 2 200 36x35x20
1/2"x1/2" 2 200 36x35x20

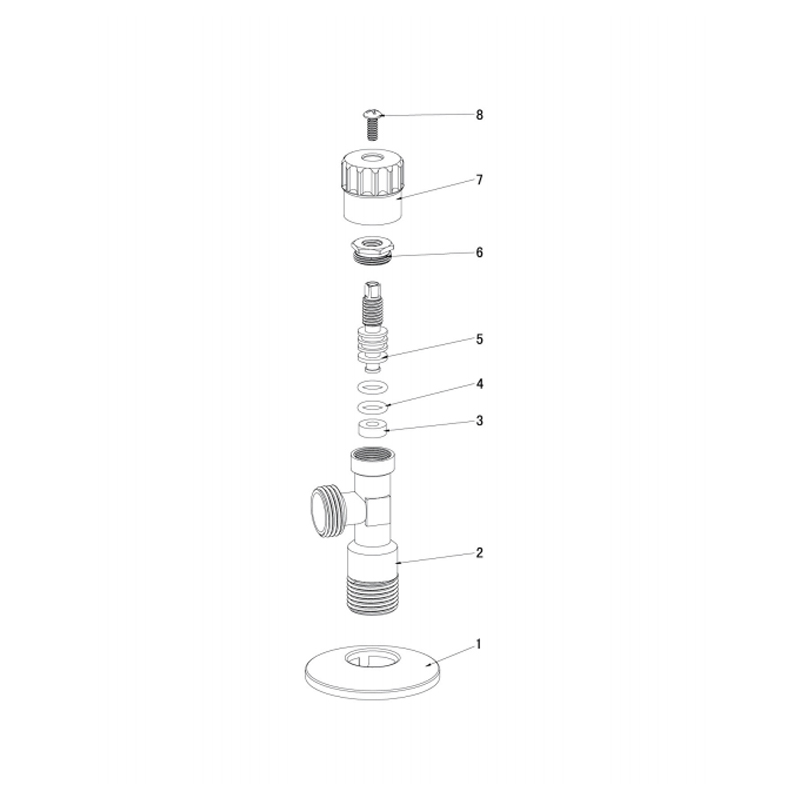

NO. Name Material Qty.
1 Rosette Stainless Steel 1
2 Body Brass 1
3 Gasket NBR 2
4 O-Ring NBR 1
5 Stem Brass 1
6 Packing Nut Brass 1
7 Handle ABS 1
8 Handle Screw Steel 1
