YD201B Angle Valves With Filter

YD201B Angle Valves With Filter

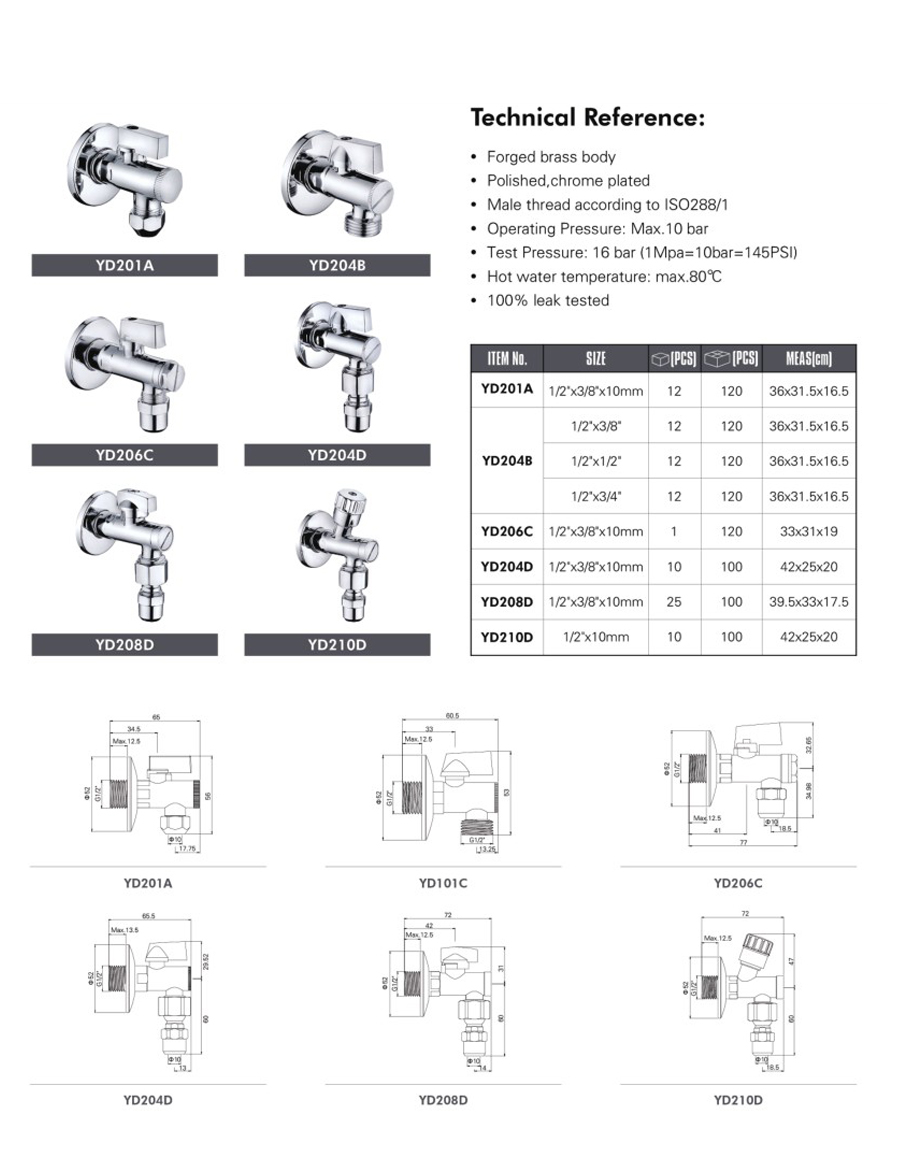

Technical Reference:
●Forged brass body
●Polished,chrome plated
●Male thread according to IS0288/1
●Operating Pressure: Max.10 bar
●Test Pressure: 16 bar (1 Mpa= 1Obar=1 45PSI)
●Hot water temperature: max.80℃
●100% leak tested
YD201B Angle Valves With Filter

YD201B Angle Valves With Filter

YD201B 1/2"x3/8" 12 120 36x31.5x16.5
1/2"x1/2" 12 120 36x31.5x16.5
1/2"x3/4" 12 120 36x31.5x16.5

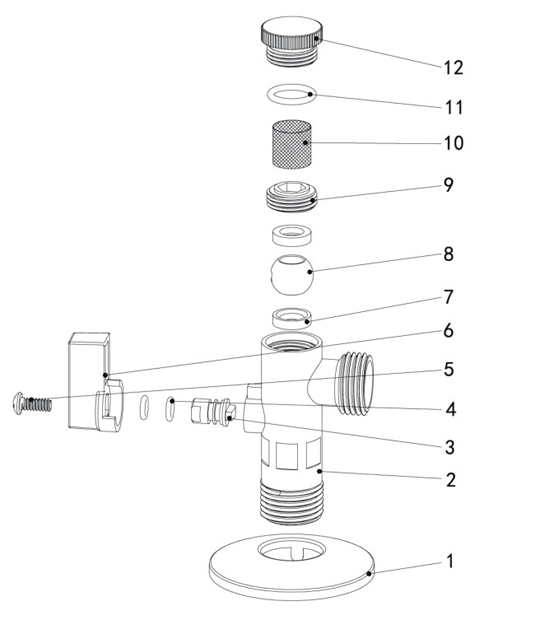

NO. Name Material Qty.
1 Rosette Stainless Steel 1
2 Body Brass 1
3 Stem Brass 2
4 O-Ring NBR 1
5 Handle Screw Steel 1
6 Handle ABS 1
7 Ball Seat Ptfe 1
8 Ball Brass 1
9 Locking Nut Brass 1
10 Filter Stainless Steel 1
11 O-Ring NBR 1
12 Filter Cap Brass 1
